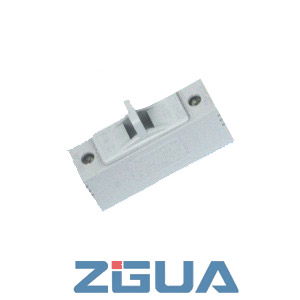

Cylingrical fuse base

Cylingrical fuse base Cylindrical Contact Cap Fuses
According to IEC 269-2,NF C 63 210-63 211-63 200,GB 13539 Standards
Rated voltage:AC 500V
Utilization category AC-20B,DC-20B

Size Fuse Link Size Order No. Fig. Weight(g)
Rated current 20A

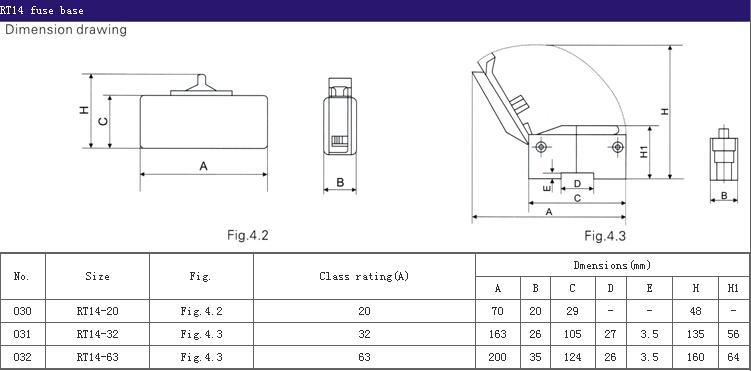

RT14-20 10×38 RT1420FB Fig.4.2 37
Rated current 32A
RT14-32 14×51 RT1432FB Fig.4.3 150
Rated current63A
RT14-63 22×58 RT1463FB Fig.4.3 255
Rated current 16A

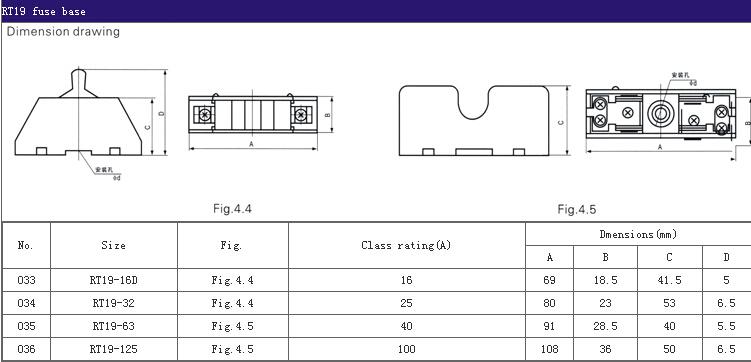

RT19-16D 8.5×31.5(aM) RT1916FB Fig.4.4 34
Rated current 25A
RT19-32 10×38(aM) RT1932FB Fig.4.4 57
Rated current 40A
RT19-63 14×51(aM) RT1963FB Fig.4.5 78
Rated current 100A
RT19-125 22×58(aM) RT19125FB Fig.4.5 157
