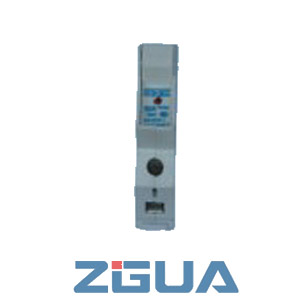

RT18-125 cylindrical fuse links

RT18-125 cylindrical fuse links Cylindrical Contact Cap Fuses

Mounting fuse bases for cylindrical fuse links
According to IEC 269-2,NF C 63 210-63 211-60200,NBN C
63 269-2 en-2-1
Rated currents:32A、63A、125A
Rated coltage:AC 500V
Utilization category AC-20B,DC-20BV

Size Fuse Link Size No.of poles Order No. Fig. Weight(g)
Rated current 125A
RT18-125 22×58 1
1+N
2
3
3+N
1PRT18125
1PRT18125
2PRT18125
3PRT18125
3PRT18125
Fig.4.6 280
560
560
840
1120
