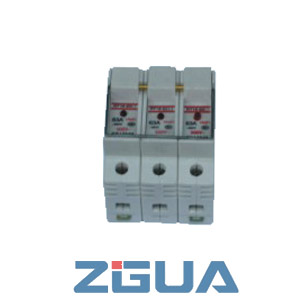

RT18-63X with LED cylindrical fuse links

RT18-63X  with LED Cylindrical Contact Cap Fuses

Mounting fuse bases for cylindrical fuse links
According to IEC 269-2,NF C 63 210-63 211-60200,NBN C
63 269-2 en-2-1
Rated currents:32A、63A、125A
Rated coltage:AC 500V
Utilization category AC-20B,DC-20BV

Size Fuse Link Size No.of poles Order No. Fig. Weight(g)
Rated current 63A
RT18-63X
with LED
14×51 1
1+N
2
3
3+N
1PRT1863X
1PRT1863X
2PRT1863X
3PRT1863X
3PRT1863X

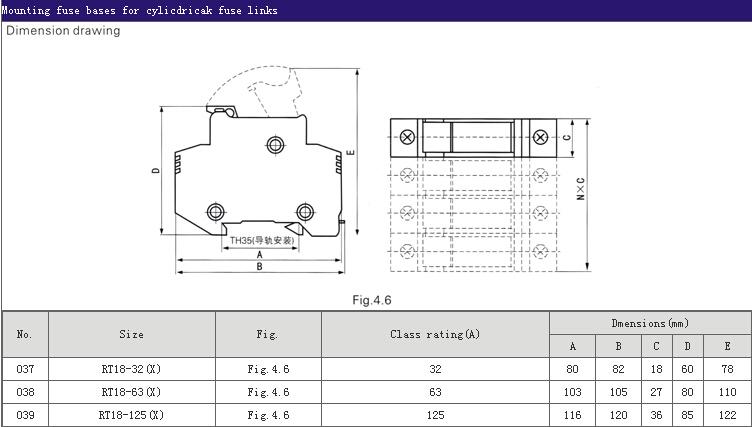

Fig.4.6 192
384
384
576
768
