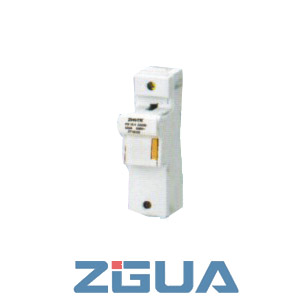

ZT18-125X with LED Mounting fuse bases for cylindrical fuse links

ZT18-125X  with LED Mounting fuse bases for Cylindrical Contact Cap Fuses

Mounting fuse bases for cylindrical fuse links
According to IEC 269-2,NF C 63 210-63 211-60 200,NBN C
63269-2 en-2-1
Rated currents:32A、63A、125A
Rated voltage:AC 500V
Utilization category AC-20B,DC-20B

Size Fuse Link Size No.of poles Order No. Fig. Weight(g)
Rated current 125A
ZT18-125X
with LED
22×58 1
1+N
2
3
3+N

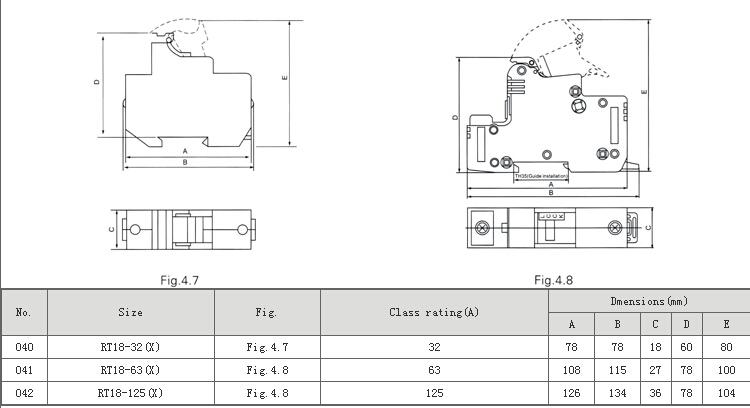

1PZT18125X Fig.4.8 280
560
560
840
1120
1PZT18125X
2PZT18125X
3PZT18125X
3PZT18125X
