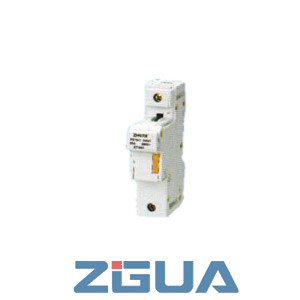

ZT18-63 Mounting fuse bases for cylindrical fuse links

ZT18-63 Mounting fuse bases for Cylindrical Contact Cap Fuses

Mounting fuse bases for cylindrical fuse links
According to IEC 269-2,NF C 63 210-63 211-60 200,NBN C
63269-2 en-2-1
Rated currents:32A、63A、125A
Rated voltage:AC 500V
Utilization category AC-20B,DC-20B

Size Fuse Link Size No.of poles Order No. Fig. Weight(g)
Rated current 63A
ZT18-63 14×51 1
1+N
2
3
3+N
1PZT1863
1PZT1863
2PZT1863
3PZT1863
3PZT1863
Fig.4.8 192
384
384
576
768
