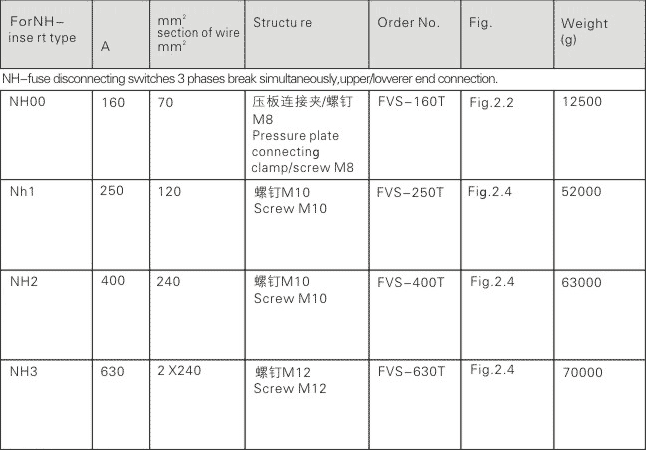

NH fuse disconnecting switches

Fuses Disconnecting Switches NH fuse disconnecting switches For NT and NH fuse links According to EN 60947-1 and EN 60947-3 Rated voltage:690V AC/440V DC Rated Currents:160A,250A,400A/630ARated insulation voltage:size NH00 to

 NH Fuses Disconnect Switch

  • Fuses Disconnecting Switches
  • NH fuse disconnecting switches
  • For NT and NH fuse links
  • According to EN 60947-1 and EN 60947-3
  • Rated voltage:690V AC/440V DC
  • Rated Currents:160A,250A,400A/630A
  • Rated insulation voltage:size NH00 to NH3 AC 750V
  • Rated short-ci rcuit current:50kA AC eff,25kA DC eff
  • Degree of protection lP 20 wiht operational status,IP 10 with open slewing equipment
