high voltage fuse XRNM1

High-voltage high voltage fuse for protection electrical motor (england bs standard)The product can be used in indoor Ac system of 50Hz and rated voltage 3.6kV and 7.2KV 12Kv.When used together with other protection

high voltage fuse for protection electrical motor (england bs standard)

The product can be used in indoor Ac system of 50Hz and rated voltage 3.6kV and 7.2KV 12Kv.When used together with other protection facilitles(such as switches and vacuum contactors), it works to protect high-volttage motor and other electric facilities from overloading and circrit break.

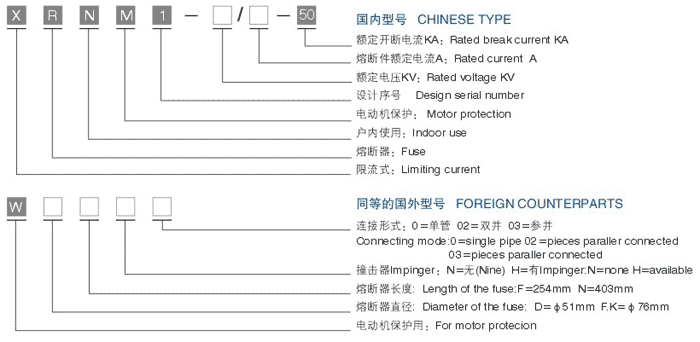

Type instruction

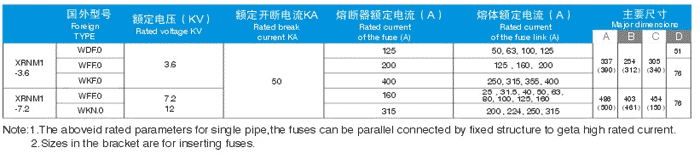

Basic parameters

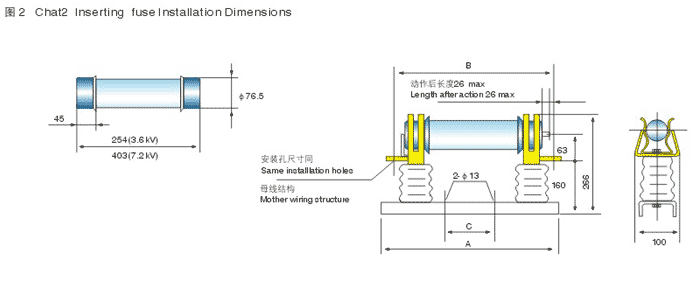

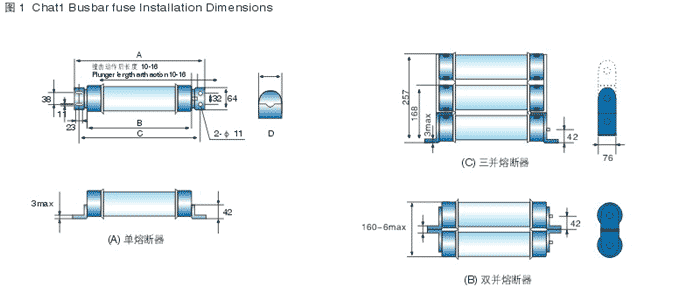

Installation Dimensions
