high voltage fuse XRNP

High-voltage high voltage fuse for instruments transformer protection This product can be used in indoor system of Ac50Hz and rated voltage of 3.6-40.5KV to protect the voltage mutual-inductor from over loading and circuit

high voltage fuse XRNP

High-voltage high voltage fuse for instruments transformer protection

This product can be used in indoor system of Ac50Hz and rated voltage of 3.6-40.5KV to protect the voltage mutual-inductor from over loading and circuit break.(tested by-inductor from overloading and circ-uit break. (Tested by National high-voltage quality Supervising and Testing Center,in accordance with GBl5166.2 and IEC282-1).

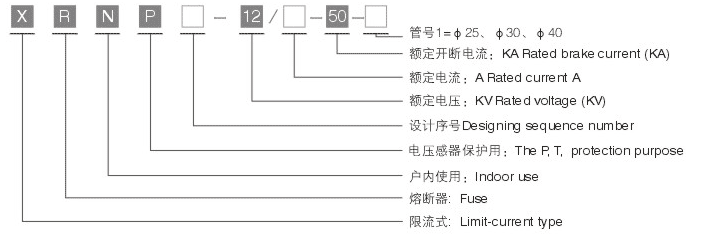

Type instruction

Basic parameters

See chart for the fuse of basic parameters

  Type

Rated Voltage(KV)

Rated current(A)

Rated brake current(KA)

XRNP1-□/□-□-1

7.2(3.6) 12

0.2,0.3,0.5,1,2,3.15

50

XRNP1-□/□-□-1

24

0.2,0.3,0.5,1,2,3.15

50

XRNP1-□/□-□-2

12

2,3.15

50

XRNP6-□/□-□-1

40.5

0.2,0.3,0.5,1,2,3.15

31.5

XRNP6-□/□-□-3

0.2,0.3,0.5,1,2,3.15,4.5

XRNP6-□/□-□-4

0.2,0.5,1,2,3.15,6.3
