high voltage fuse XRNT5

ZGR3(XRNT5)-15.5H.V. current-limiting back-up fuse for short-circuit protection of oil-immersed transformer(here-under fuse)is available for H.V. indoor electric system, with rated voltage 15.5Kv, rated current up to 175A, 50Hz a.c.. It is used

high voltage fuse XRNT5

General

ZGR3(XRNT5)-15.5H.V. current-limiting back-up fuse for short-circuit protection of oil-immersed transformer(here-under fuse)is available for H.V. indoor electric system, with rated voltage 15.5Kv, rated current up to 175A, 50Hz a.c.. It is used for protecting from short-circuit for power transformer. It can offer protection of all-round together in series with ZGR4(PRNT13)-15.5 H.V. fuse for overload protection of oil-immersed transformer.

Standard

Accord with GB15166.2 Alternating-current high-voltage

fuses Current-limiting fuse

Order number

Basic parameters

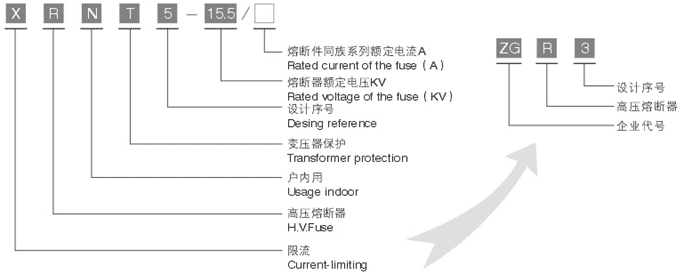

Type instruction
