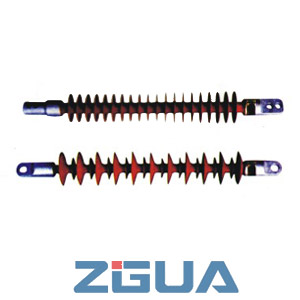

FQX High voltage insulator

Composite Insulators for locomotive

FQX High voltage insulator

Composite Insulators for locomotive

Type Rated voltage(KV) Rated Mechanism Stretch Withstand(KN) Struction Height(mm) Creepage Distance(mm) Lighting Imputse Withstand BIL(KV) Power Frequence Withstand(wet)(KV)
FQX1-25 25 70 650 1400 270 130
FQX2-25 25 70 840 1400 270 130
FQX3-25 25 70 930 1400 270 130
FQX4-25 25 70 645 1400 270 130
