product description

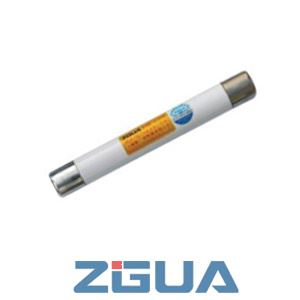

high voltage fuse XRNP

high voltage fuse supplier introduction_high voltage fuse

This product can be used in indoor system of Ac50Hz and rated voltage of 3.6-40.5KV to protect the voltage mutual-inductor from over loading and circuit break.(tested by-inductor from overloading and circ-uit break. (Tested by National high-voltage quality Supervising and Testing Center,in accordance with GBl5166.2 and IEC282-1).

Basic parameters

Type Rated Voltage(KV) Rated current(A) Rated brake current(KA)
XRNP1-□/□-□-1 7.2(3.6) 12 0.2,0.3,0.5,1,2,3.15 50
XRNP1-□/□-□-1 24 0.2,0.3,0.5,1,2,3.15 50
XRNP1-□/□-□-2 12 2,3.15 50
XRNP6-□/□-□-1 40.5 0.2,0.3,0.5,1,2,3.15 31.5
XRNP6-□/□-□-3   0.2,0.3,0.5,1,2,3.15,4.5
XRNP6-□/□-□-4   0.2,0.5,1,2,3.15,6.3

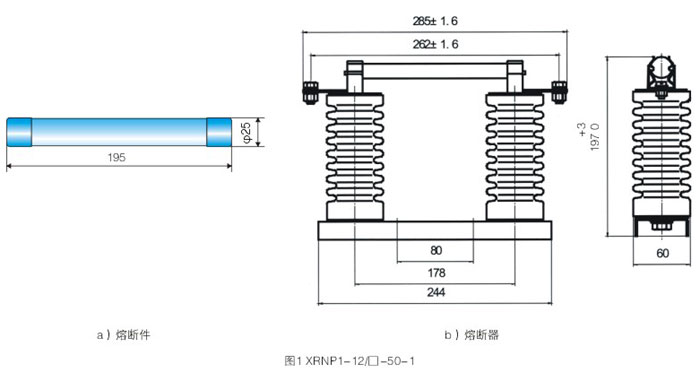

Outline

high voltage fuse supplier introduction_high voltage fuse drawing

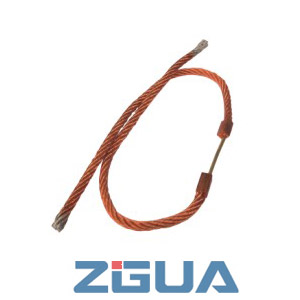

general fuse link without button

high voltage fuse supplier introduction_fuse link without button

The general fuse link :The product is made of tradtional silver and copper alloy,and its melting rateiS 10-13. The product applies to RW1-10, RW3, RW4, RW5, Rw7 and so ondrop-off type fuse.
