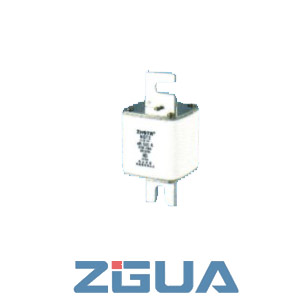

NGT3 fuse links

NGT3 NGT/RSO/FS3 Fuse Links

NGT,RSO&FS3 Series Fuse Links

According to GB13539 and IEC 269

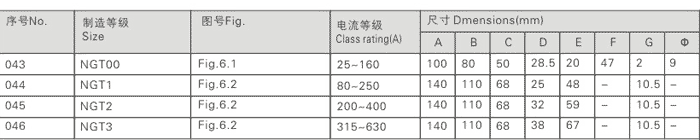

Dimensions according to DIN 43620,DIN 43653
Rated voltage:AC 500V,AC 690V,AC 1000V
Ope rating class gR(aR)
For semiconductor protection

size In Order NO. Fig. Weight
A (g)
With bolt-on lugs
Rated voltage:AC 690V

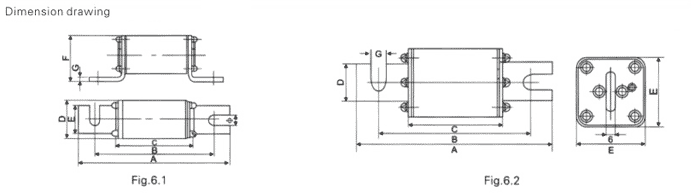

NGT3 315 315RNGT3 Fig.6.2 910
400 400RNGT3
450 450RNGT3
500 500RNGT3
630 630RNGT3
