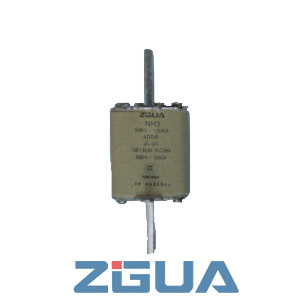

NH Fuse link

NH Fuse link Acco rding to IEC60269,DIN 43620,GBl3539 and CE Safety,ROHS certificate.Rated voltage:AC500V/690V or DC 440V Rated Current:2A~1250A. Exception:Size 00 with DC 250V Operating class①gL/gG for cable and conductor

 NH Fuse link NT(NH) RT16 Fuses

  • NH Fuse link
  • Acco rding to IEC60269,DIN 43620,GBl3539 and CE Safety,ROHS certificate.
  • Rated voltage:AC500V/690V or DC 440V
  • Rated Current:2A~1250A.
  • Exception:Size 00 with DC 250V
  • Operating class
  • ①gL/gG for cable and conductor protection
  • ②aM for motor protection
  • ③aR for semiconductor protection
  • Finely graduated selectivity
  • Rated breaking capacity:AC 120kA(Size 00:AC 50kA)

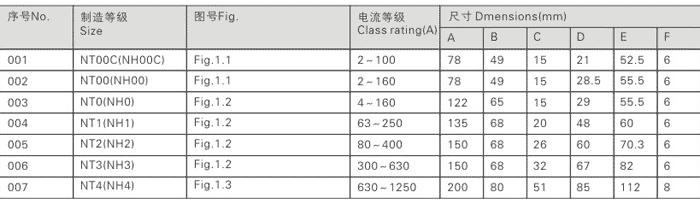

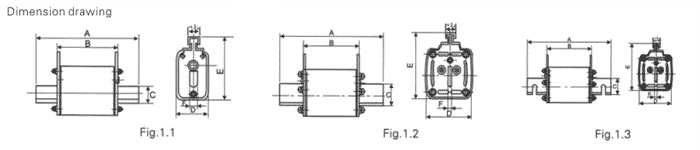

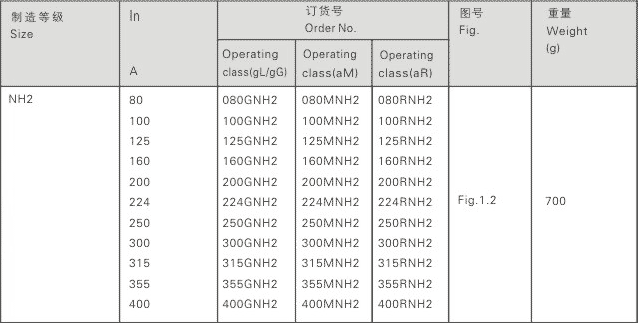

  • Technology Parameter
