Screw type fuse base DII/63

Screw type fuse base DII/63

● According to DIN VDE 0636,IEC 269
● Rated voltage:E16/DII  AC 500V DIII AC 660/DC 660V
● 1 and 3 pole models for snap-on and screw fixing
● Device mounting depth approx 85mm

size/in A For thread Order NO. Fig. Weight (g)
Rated current 63A

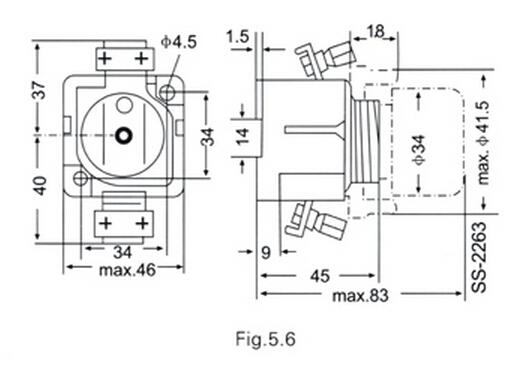

DII/63 E33 FBE33 Fig.56 240
