Arrester disconnector

The zinc oxide arrester is the most advanced over-voltage protector in the world.Due to make the resistor disc of core component mainly adopt zine oxide arrester.Compared with the conventional silicon carbide arrester,this presciption

Arrester disconnector Zinc Oxide Arrester

Arrestor disconnector is a device for disconnecting an arrestor from the systm in the event of arrestor failure,to prevent a persisient fault on IEC the system and to give visible indication of the failed arrestor.TL-1 is a thermal explode disconector.our products as per IEC60099-4.Standard.

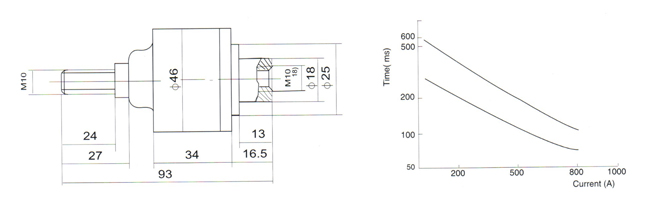

Arresctor disconnector V-S character

current level Power frequency(A) 2000us square wave impulse current(A) 4/10us high current(KA)
20 200 800 600 100
  <0.5 <0.04 <0.02
