Company Profile

Zhejiang Zhiguang Fuse Co., Ltd. has sufficient technical capabilities, precise manufacturing technology and sophisticated testing equipment. The company now has more than 100 specifications of "ZIGUA" series products, all of which comply with international IEC standards and ANSI.C37.42. DIN43625, BS2692, IEC282-2-1995, IEC60644, IEC60470, IEC60282-1, IEC60269 and CCC, GB15166.1, GIN51-66.2, GBl51766.5, GB13539, DIN 43620, DL / T640-1997, at the same time, we pass IS09001 : 2000 Quality System Certification and CE Certification European Community. Some products have reached the level of advanced industrial countries such as Europe, the United States, and Japan. Modern enterprise management, management system.

Tel: 86-577-61732588 62724880

Fax: 86-577-62727213



Product Description

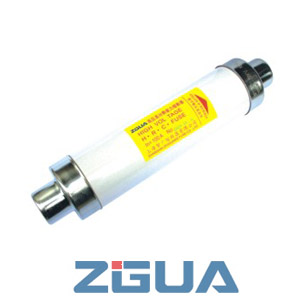

high voltage fuse XRTN1

high voltage fuse manufacturer introduction_high voltage fuse

This product can be used in indoor system of 50Hz and rated voltage 12kv. lt can break any problem current between the fuse melting current and the rated break, it has also the non-current limit fuse of small current protection. an overall break protection can be achieved.

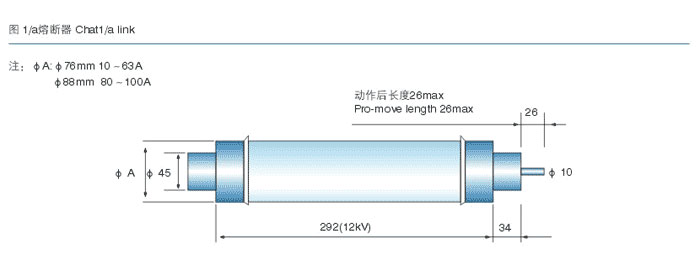

Outline

high voltage fuse manufacturer introduction_high voltage fuse drawing

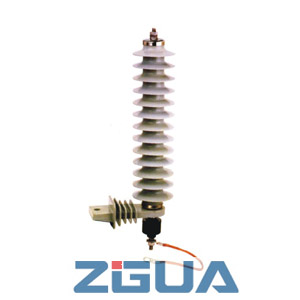

HY zinc oxide arrester RTA-1 33-36KV

high voltage fuse manufacturer introduction_HY zinc oxide arrester

The zinc oxide arrester is the most advanced over-voltage protector in the world.Due to make the resistor disc of core component mainly adopt zine oxide arrester.Compared with the conventional silicon carbide arrester,this presciption of the product improves greatly the volt-Ampere characterisics of the resistor disc and increased through-current capabil- ity at over-voltage so as to bring a radical changes for the characteristics of the arresters.

Under the circumstance of normal operating voltage,the current through the arrester is just on microampere degree.When suffered from over-voltage,the arrester's excellent nonlinear characteristics will make the current through the arrester increase to several thousand amperse, while the arrester wilI be under the circulating state and release over- voltage energy so as to protecting the power thansmission equipments against the damage caused by the over-voltage.

Application & Characteristics

The zinc oxide arrester applies to protect the electrical equipment in AC power system against the damage resulted from atmospheris over-Voltage and operational over-voltage.

Condition of Use

  • The ambient air temperatures is no higher than+40℃,no lower than-40℃.
  • The altitude above sea level does not exceed 1000-2000m(the altiplanoarea should be indicated when order).
  • AC system frequency 50Hz or 60Hz.
  • Industrial frequency voltage brought to bear on arrester for a long time does not exceed arrester's sustained operation voltage.
  • Maximum wind speed does not exceed 35m/s.
  • The earthquake intensity does not exceed 7 degrees.
  • The filthy area should be given clear indication.

Technical performance

The technical performance of the prodect is in conformit to GB 110322000,IEC60099-4&IEEE.C62.11 standard technic requirements.

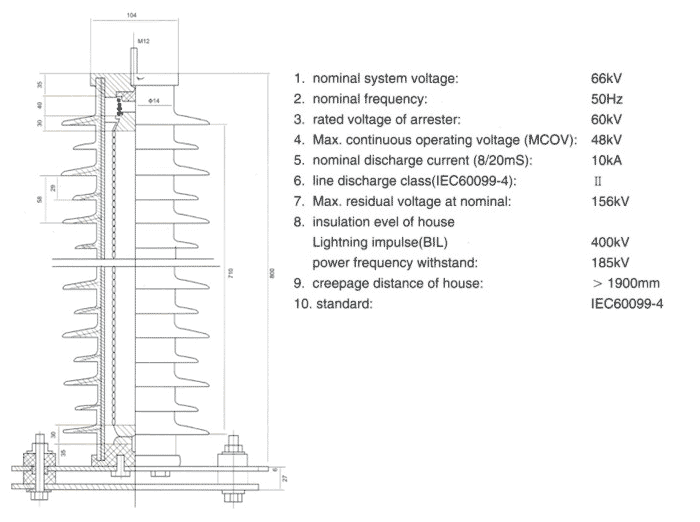

Outline

high voltage fuse manufacturer introduction_HY zinc oxide arrester drawing
