product description

high voltage fuse XRNP

high voltage fuse manufacturer recommend_high voltage fuse

This product can be used in indoor system of Ac50Hz and rated voltage of 3.6-40.5KV to protect the voltage mutual-inductor from over loading and circuit break.(tested by-inductor from overloading and circ-uit break. (Tested by National high-voltage quality Supervising and Testing Center,in accordance with GBl5166.2 and IEC282-1).

Basic parameters

Type Rated Voltage(KV) Rated current(A) Rated brake current(KA)
XRNP1-□/□-□-1 7.2(3.6) 12 0.2,0.3,0.5,1,2,3.15 50
XRNP1-□/□-□-1 24 0.2,0.3,0.5,1,2,3.15 50
XRNP1-□/□-□-2 12 2,3.15 50
XRNP6-□/□-□-1 40.5 0.2,0.3,0.5,1,2,3.15 31.5
XRNP6-□/□-□-3   0.2,0.3,0.5,1,2,3.15,4.5
XRNP6-□/□-□-4   0.2,0.5,1,2,3.15,6.3

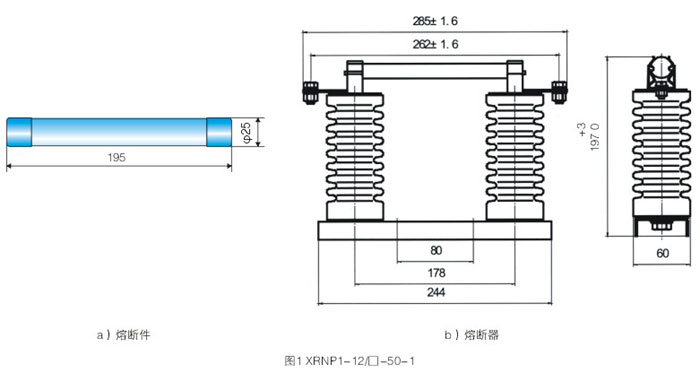

Outline

high voltage fuse manufacturer recommend_high voltage fuse drawing

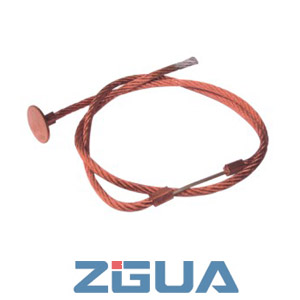

New with-trip fuse wire

high voltage fuse manufacturer recommend_fuse wire

The new type fuse“T”type,and its melting rate is 10-13, it applies to RW6-66KV, RW5-35KV on drop-off typefuse.
