NGT00 fuse links

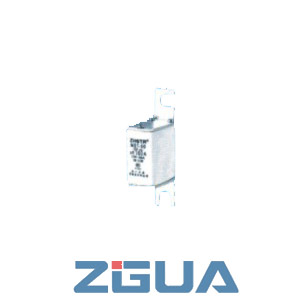

NGT00 NGT/RSO/FS3 Fuse Links

NGT,RSO&FS3 Series Fuse Links

According to GB13539 and IEC 269
Dimensions according to DIN 43620,DIN 43653
Rated voltage:AC 500V,AC 690V,AC 1000V
Ope rating class gR(aR)
For semiconductor protection

size In Order NO. Fig. Weight
A (g)
With bolt-on lugs
Rated voltage:AC690V
NGT00 25 025RNGT00 Fig.6.1 185
32 032RNGT00
40 040RNGT00
50 050RNGT00
63 063RNGT00
80 080RNGT00
100 100RNGT00
125 125RNGT00
160 160RNGT00
