Zhejiang Zhiguang Fuse Co.Ltd a modern company specialized in high voltage fuse and low voltage fuse production in China.

With sufficient technology capability precise manufacturing technique and Well-equipped test facility, the Company now owns above 100 types of series "ZIGUA" products covering more than 1000 specifications,all the products comply with international IEC standard and ANSI.C37.42, DIN43625, BS2692, IEC282-2-1995, IEC60644, IEC60470, IEC60282-1, IEC60269,and CCC, GB15166.1, GIN51-66.2, GBl51766.5, GB13539, DIN 43620, DL/T640-1997, at the Same time,we passed IS09001:2000 quality system certification and CE Certification European Community . Parts of the products have reached the level of advanced industrial countries in Europe,USA,Japan etc . Modern enterprise management,managing system,good after-sales service and ceaseless innovation make the company develop rapidly and become one of the enterprises with most tremendous potentiality and potentiality in the same industry.

The market is the base for the enterprise's survival . After years of market test,the products not only satisfy the customers at home but also have been exported to above 30 countries and areas, it has won the reputation aII of the world with its advanced technology,perfect function,reliable quality and high quality service.

In order to realize sustainable development of enterprise in the competitive market,the company always intends to offer better products,more advanced technology and better service to the customer with the tenet of"Quality No.1 Managing with Credibility "and create a more magnificent future with mind and wisdom.




product description

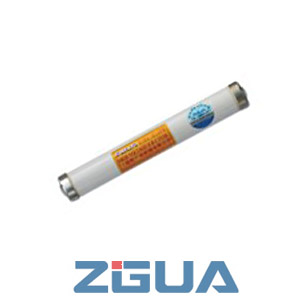

high voltage fuse XRNP

high voltage fuse manufacturer_high voltage fuse XRNP

This product can be used in indoor system of Ac50Hz and rated voltage of 3.6-40.5KV to protect the voltage mutual-inductor from over loading and circuit break.(tested by-inductor from overloading and circ-uit break. (Tested by National high-voltage quality Supervising and Testing Center,in accordance with GBl5166.2 and IEC282-1).

Basic parameters

  Type Rated Voltage(KV) Rated current(A) Rated brake current(KA)
XRNP1-□/□-□-1 7.2(3.6) 12 0.2,0.3,0.5,1,2,3.15 50
XRNP1-□/□-□-1 24 0.2,0.3,0.5,1,2,3.15 50
XRNP1-□/□-□-2 12 2,3.15 50
XRNP6-□/□-□-1 40.5 0.2,0.3,0.5,1,2,3.15 31.5
XRNP6-□/□-□-3   0.2,0.3,0.5,1,2,3.15,4.5
XRNP6-□/□-□-4   0.2,0.5,1,2,3.15,6.3

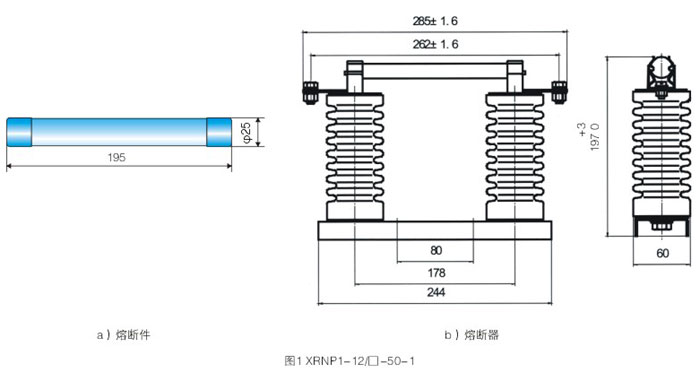

high voltage fuse manufacturer_high voltage fuse drawing

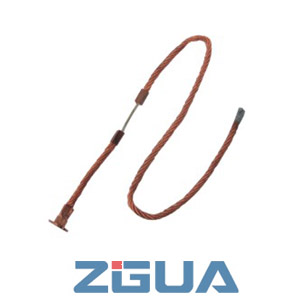

general fuse link with button

high voltage fuse manufacturer_general fuse link

The general fuse link with button:The product is made of tradtional silver and copper alloy,and its melting rate is 10-13. It applies to Rwl0, RWll, RWl3, RW20, PRWG, PRWG2 and so on drop-off type fuse.
